Steel Lintels
SKL Type
Lintels, Door Heads, Cross Beams and Channel Steel for structural support as well as interior decoration materials are used in this context
Shang Kai Steel's steel lintels are a convenient construction material that can replace traditional concrete structures. They offer higher load-bearing capacity and superior durability.
The lintels come in various specifications and sizes to meet the diverse needs of different construction projects. They comply with international standards such as BS/EN 10142, ASTM-A525, and JISG3302, ensuring the highest product quality and performance.
Expanded Metal Is Available In The Following Metal Types
Carbon Steel
Pre-Galvanized Steel
Hot Dip Galvanized Steel
Stainless Steel
Aluminum

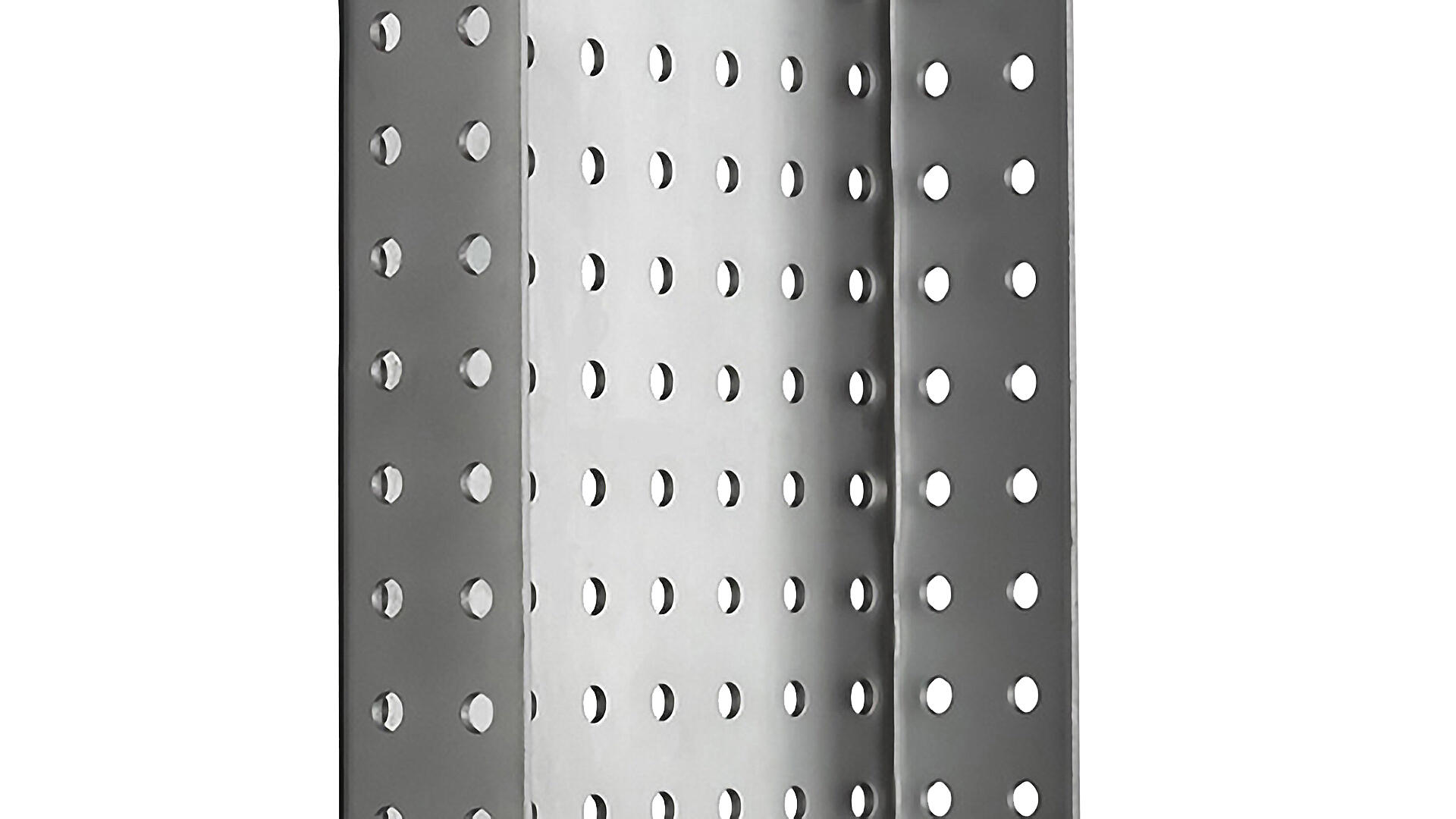

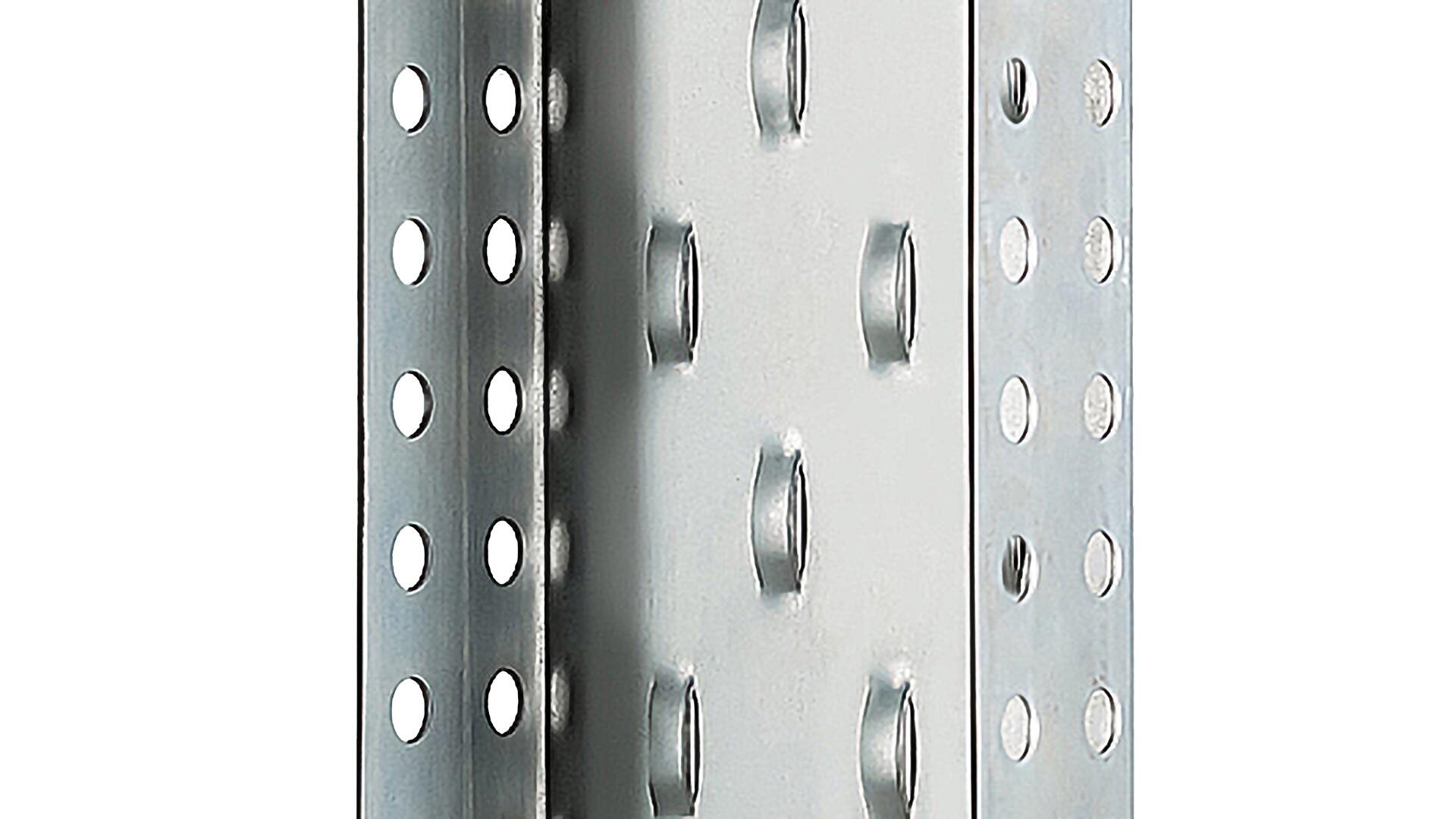

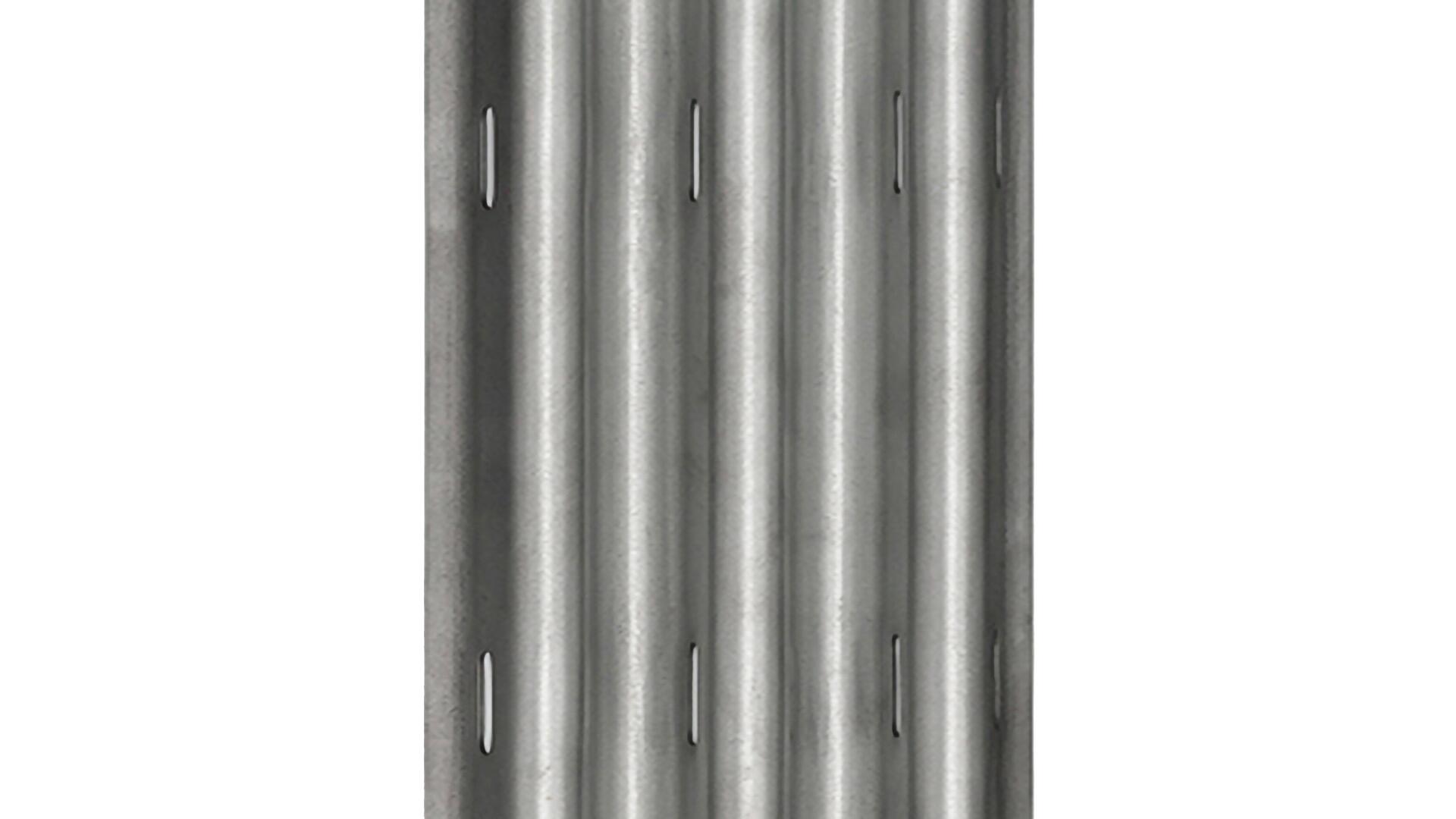

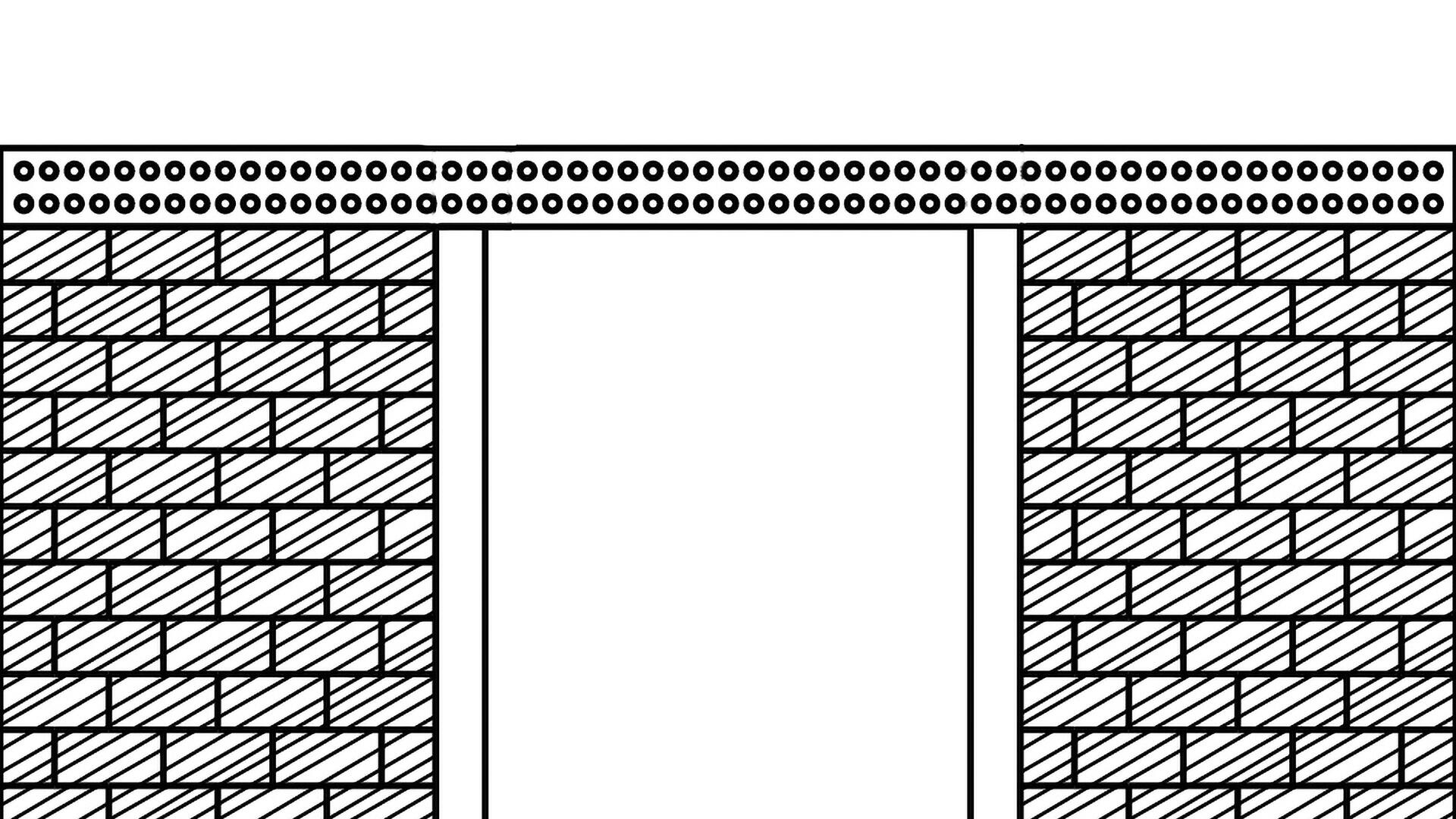

Steel Lintels
The steel lintels have a Z275 galvanized coating, which is a high-quality anti-corrosion treatment. This coating not only maintains the lintels in good condition over the long term but also provides stronger seismic resistance than traditional concrete. The lintels are designed to ensure stability and safety under extreme environmental conditions and stress.
In addition, steel lintels can be installed easily without heavy lifting equipment, reducing the time needed for concrete forging and making construction faster and more convenient. This sturdy lintel provides precision and convenience to construction projects while also improving overall safety performance.
Applications

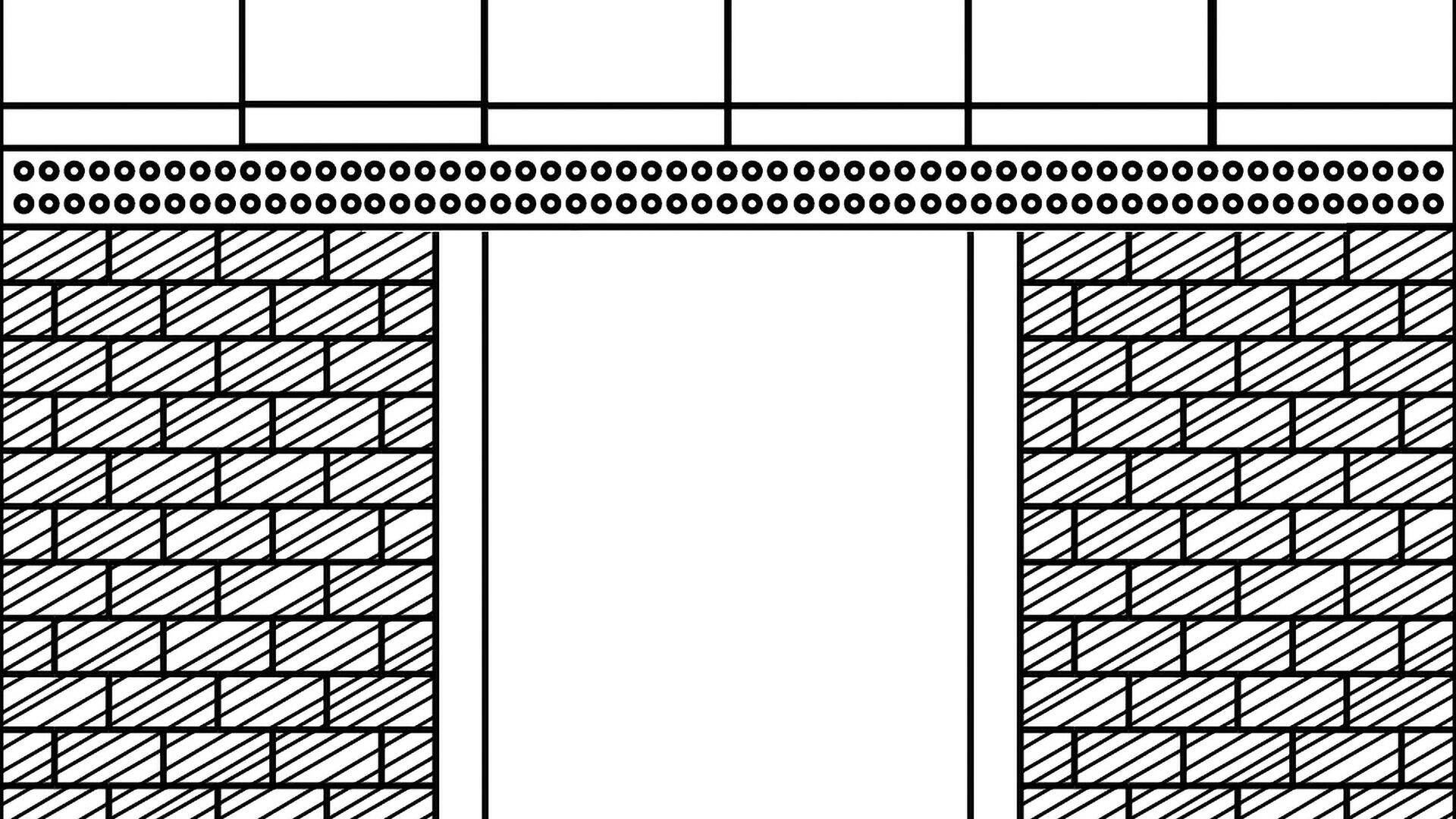

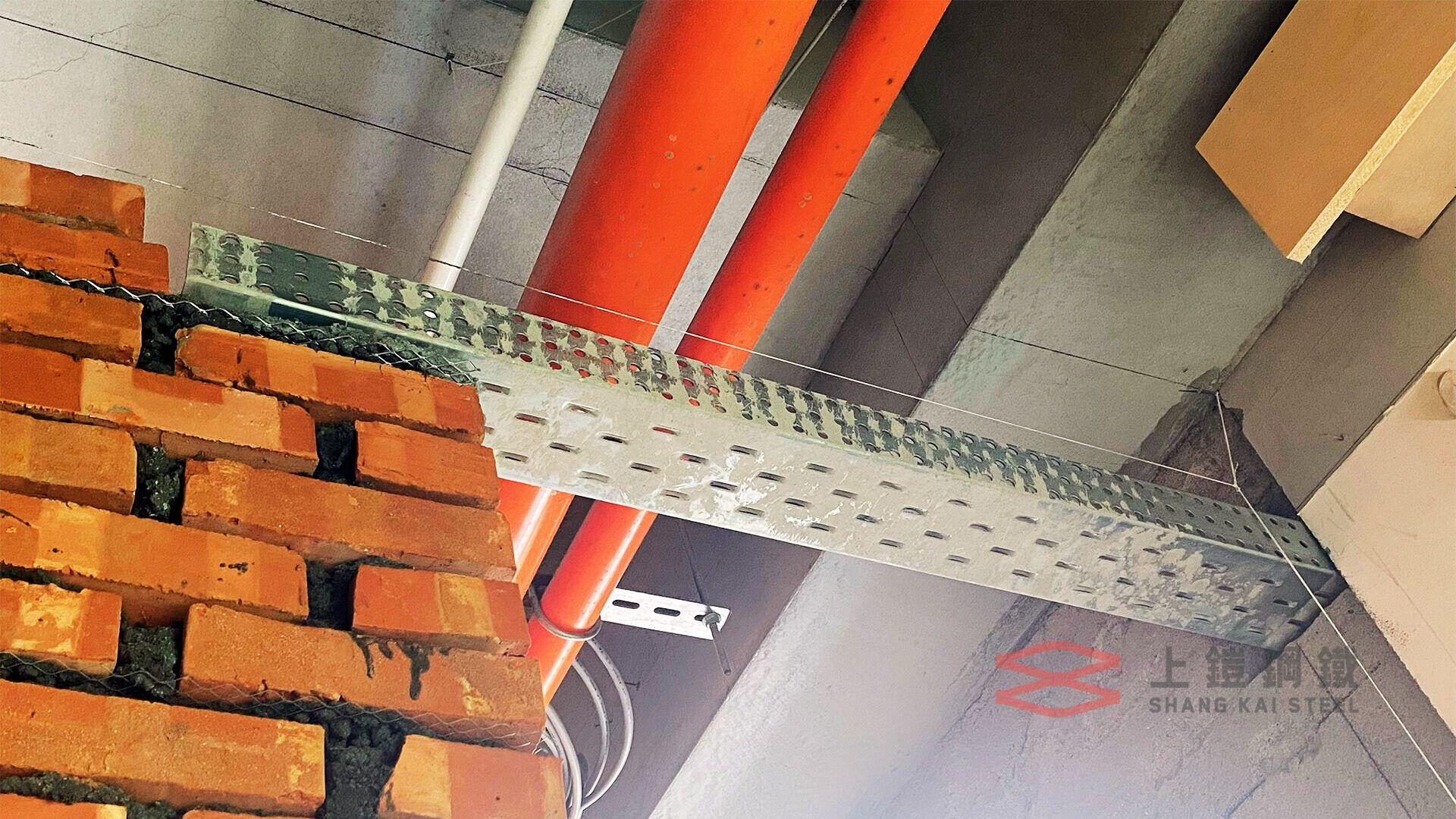

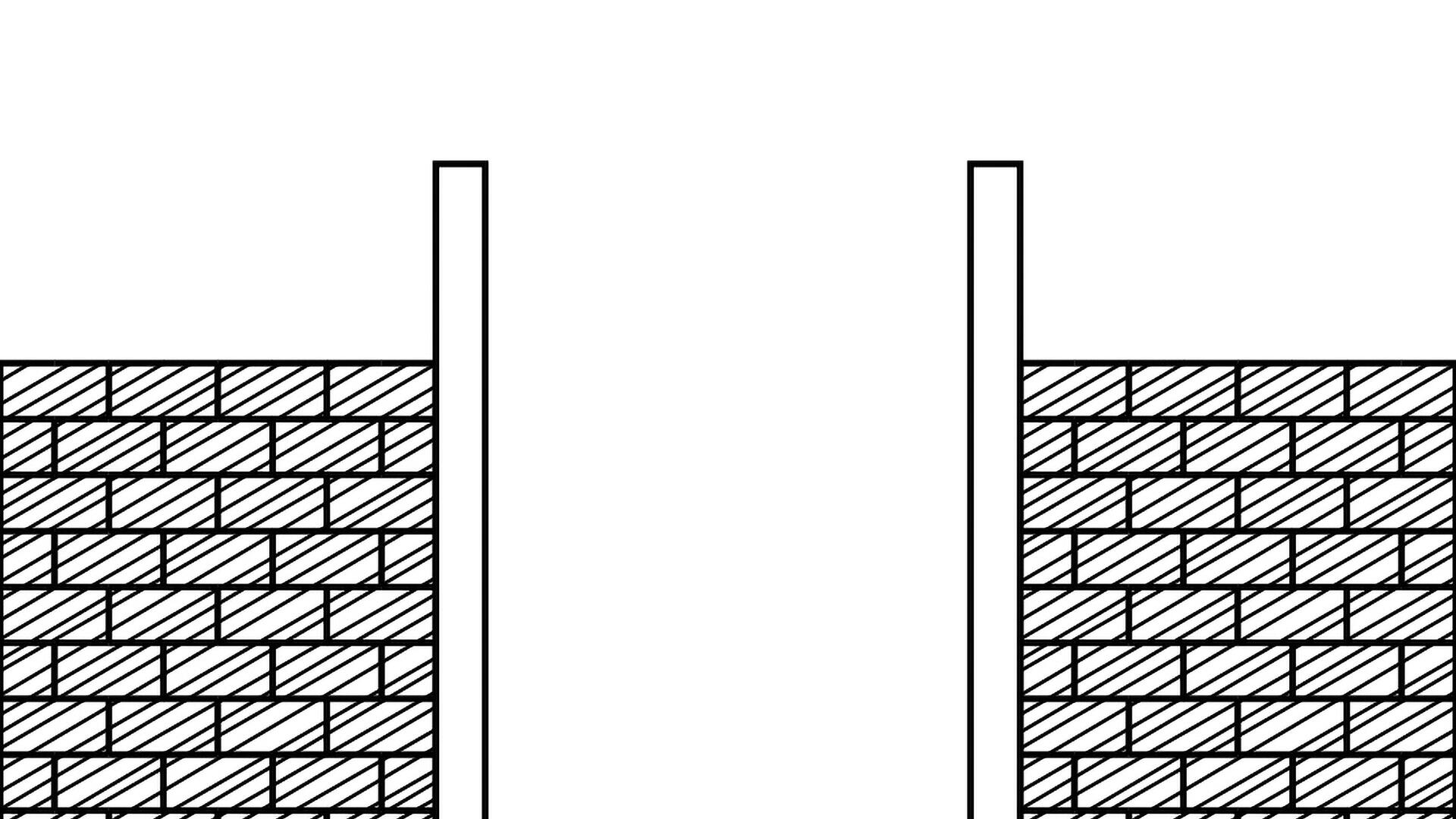

Building exteriors, interior partitions, industrial facilities, pipeline protection, fireproof material industry.

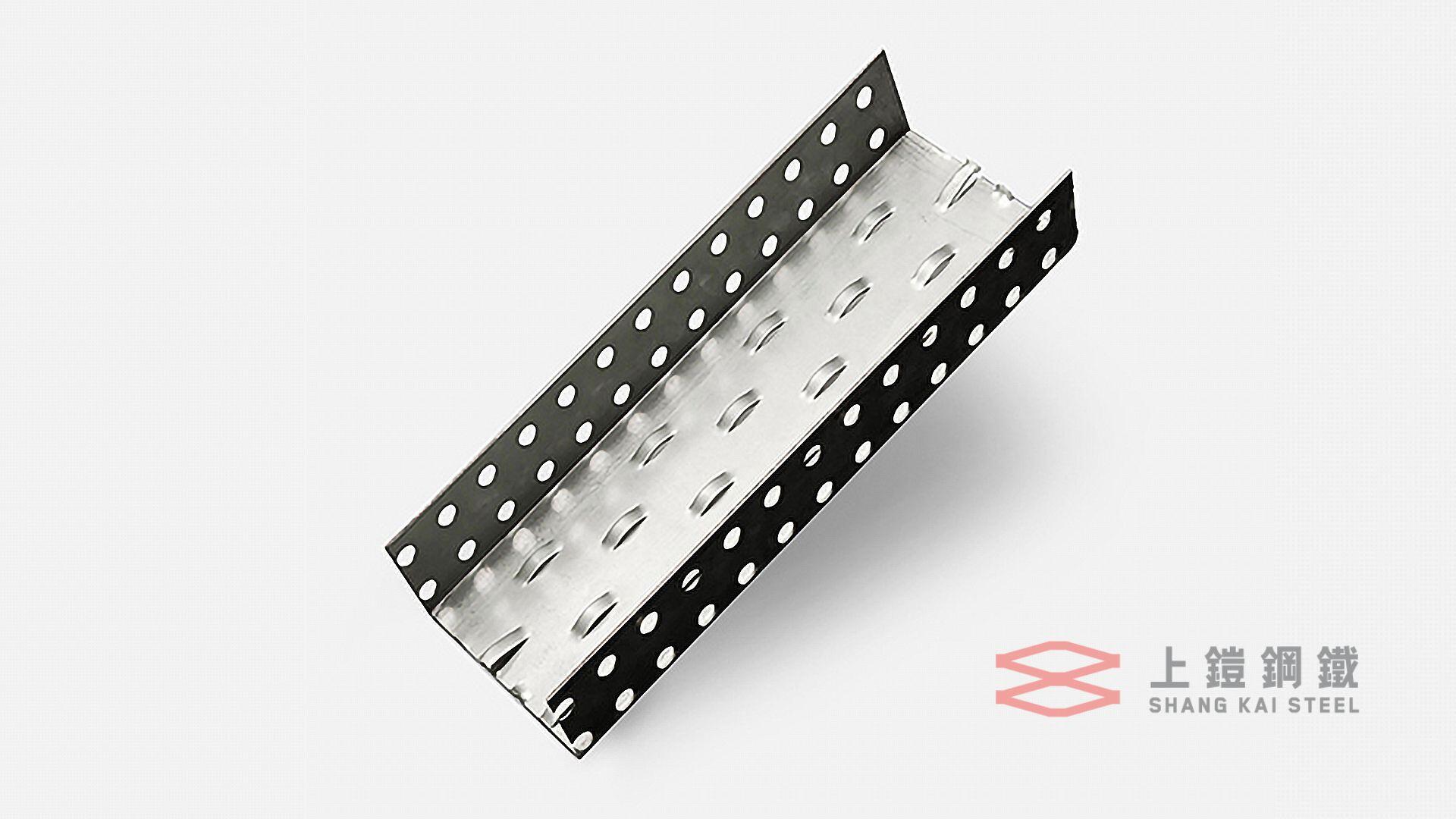

U-Channel Lintel
Product SpecificationsProduct Ref. Lengths Height Thickness Internal Width Weight (kg/m) ± 10% SKL 103 800 50 1.6 103 2.65 1300 50 1.6 103 2.65 SKL 103A 800 75 1.6 103 3.18 1300 75 1.6 103 3.18 SKL 103B 800 75 2.0 103 3.97 1300 75 2.0 103 3.97 1600 75 2.0 103 3.97 SKL 103C 800 75 2.6 103 5.20 1300 75 2.6 103 5.20 1600 75 2.6 103 5.20 1900 75 2.6 103 5.20 SKL 103D 1300 100 2.6 103 6.18 1600 100 2.6 103 6.18 Units in mm
Allowable torque, yield stress 250N/mm²
